Aluminium Doors

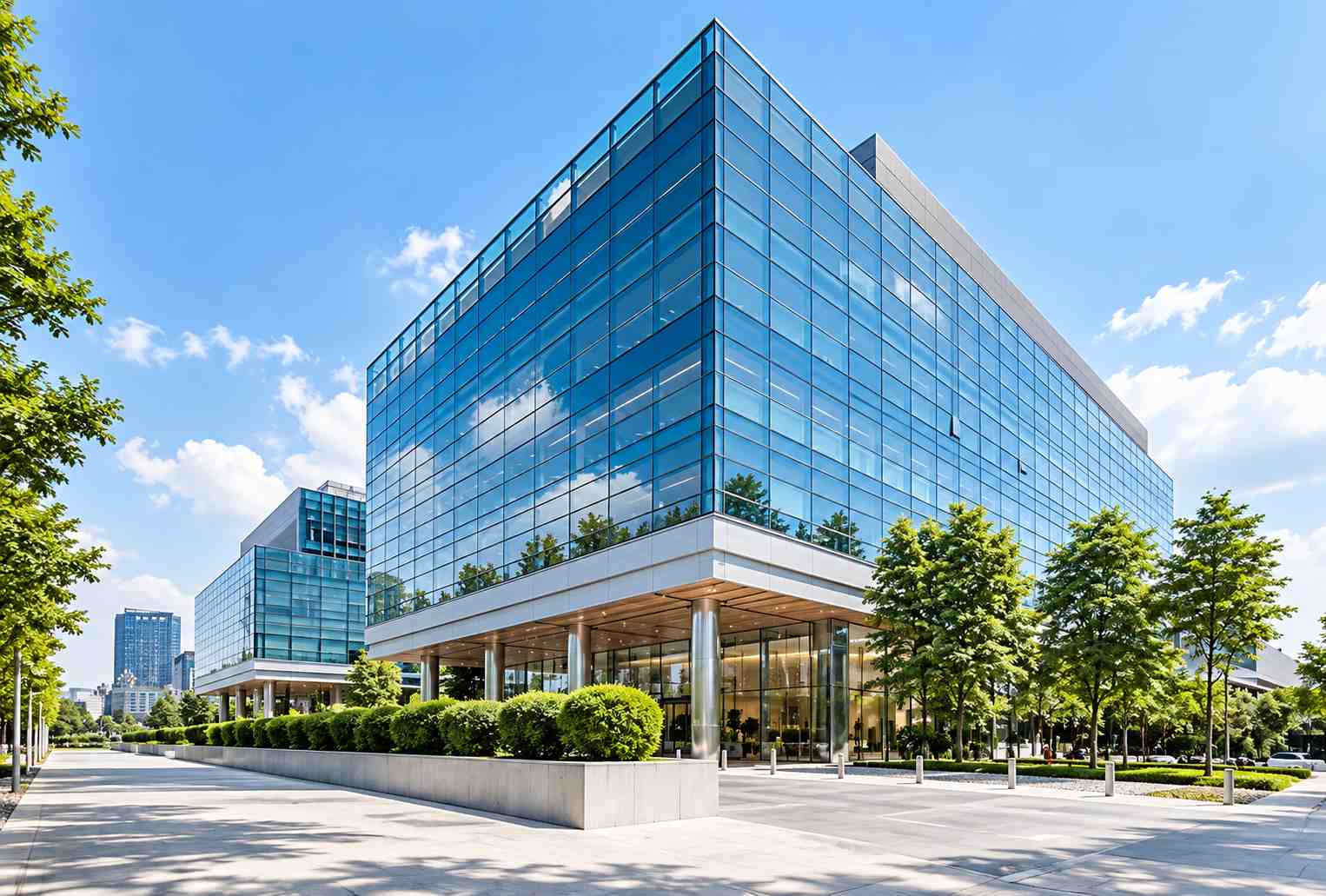

Facade System
The ENCRAFT Aluminium Facade System combines simplicity, versatility, performance, and architectural elegance to create modern curtain wall solutions. The EN Glass Facade system has been developed to simplify the creation of different facade configurations with the support of specially designed hardware and components.
Facade System
Elegance & New Styles for Curtain Walls
The ENCRAFT Aluminium Facade System combines simplicity, versatility, performance, and architectural elegance to create modern curtain wall solutions. The EN Glass Facade system has been developed to simplify the creation of different facade configurations with the support of specially designed hardware and components.
The system can be adapted to a wide range of architectural forms, including vertical facades, sloping facades, roofs, cupolas, pyramids, tunnels, and polygonal structures. Its refined profile design helps achieve a lightweight appearance with minimal visual clutter, while external cover options in different shapes, including flat and arched forms, provide additional design flexibility and architectural character.
Performance Specifications
Frame Width: 50 mm and 65 mm
Frame Depth: 100 mm and 135 mm
Maximum Frame Height for Openable Sections: 2000 mm
Maximum Frame Width for Openable Sections: 2000 mm
Maximum Load Capacity: 200 kg per sash
Glazing Options: From 5 mm to 40 mm, supporting single, double, and triple glazing
Key highlights
- Non-Insulated Aluminium Facade System: Mullion and transom construction with horizontal and vertical cover caps.
- Slim Profile Design: Available with minimal face widths of 50 mm and 65 mm, combined with straightforward profile geometries.
- Sound Insulation: Provides good airborne sound insulation when used with standard insulating glass.
- Natural Light: Designed to maximise light penetration and filtration through the facade.
- Low Maintenance: Aluminium construction provides a durable, maintenance-friendly facade solution.
Frequently asked questions
uPVC insulates far better and costs less for ordinary residential openings. Thermally broken aluminium is stronger, so it carries larger panels with slimmer frames. We usually specify uPVC for bedrooms, kitchens and bathrooms, and aluminium for very large sliders, stairwell glazing and anything above about 2.4 metres tall.
Not if the profile is UV stabilised and lead-free, which ours are. Yellowing happens with cheap unstabilised profile or recycled material. We supply a written warranty against discolouration.
An acoustic laminated inner pane inside a double-glazed unit, with the two panes at different thicknesses and a wide cavity. Just as important, choose a casement or tilt-and-turn window rather than a slider, because the sash needs to compress onto its gaskets to seal.
Yes. We bend profile on a heated forming table from a site template, so semi-circular, segmental and elliptical heads are all possible, fixed or with an operable lower sash.
