Sliding Telescopic System

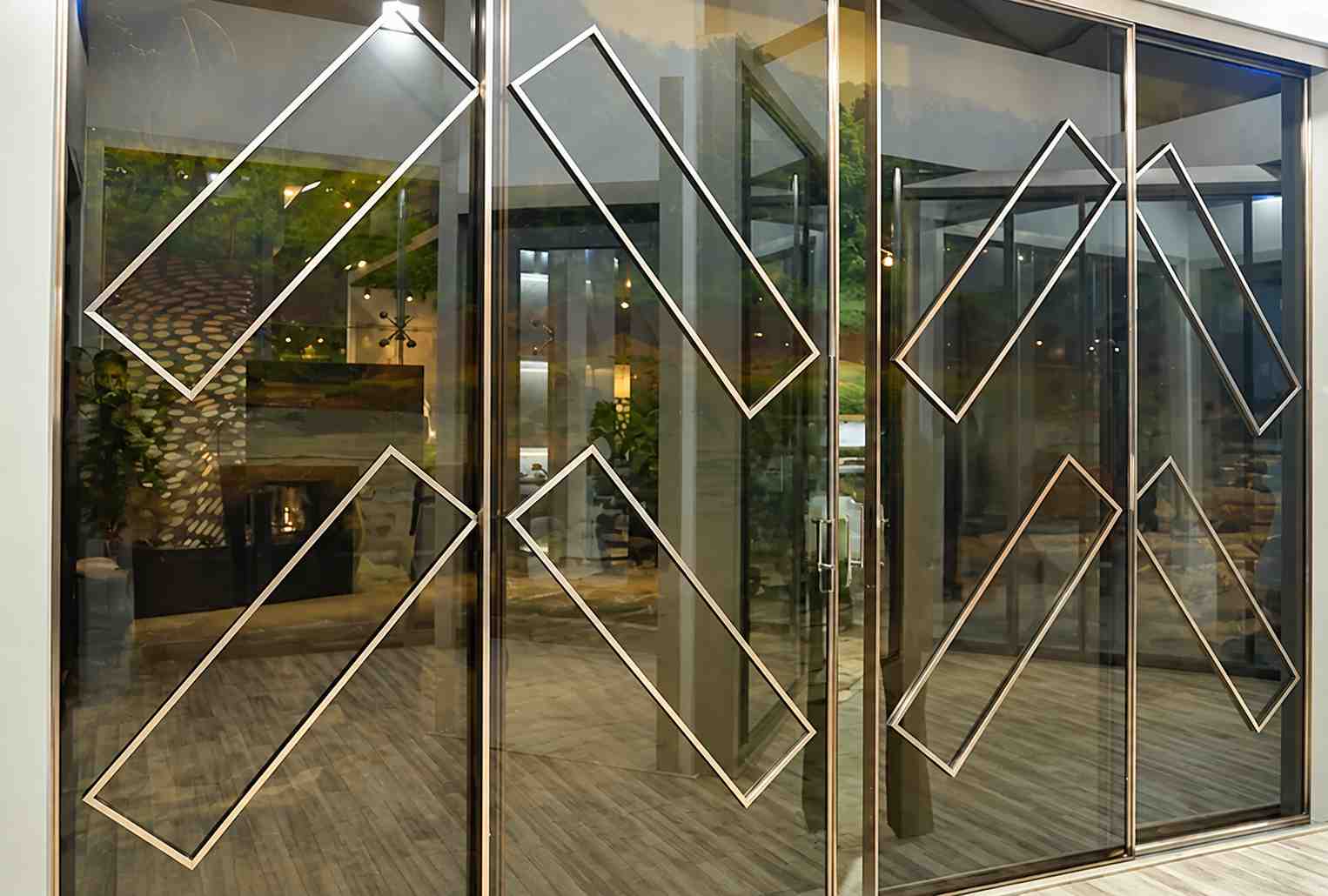

ENCRAFT Sliding Telescopic Systems are designed to provide a space-efficient and flexible solution for large openings, allowing multiple panels to slide and stack in a compact arrangement. The system is suitable for applications where maximum opening width is required while keeping the operational area clear.
Sliding Telescopic System
ENCRAFT Sliding Telescopic Systems are designed to provide a space-efficient and flexible solution for large openings, allowing multiple panels to slide and stack in a compact arrangement. The system is suitable for applications where maximum opening width is required while keeping the operational area clear.
With a contemporary aluminium profile design, the system offers a clean and modern appearance while providing flexibility in configurations, profiles, shapes, and finishes. Its robust construction and low-maintenance characteristics make it suitable for a variety of residential, commercial, and architectural applications.
The system can be customised according to different design requirements, with concealed hardware options helping maintain a minimal and refined appearance.
Features & BeneTechnical Details
Outer Frame Depth: 35 mm
Maximum Frame Height: 3000 mm
Maximum Frame Width: 5000 mm
Maximum Sash Height: Up to 3000 mm
Maximum Sash Width: Up to 1000 mm
Maximum Load Capacity: 100 kg per sash
Glazing Options: Internal glazing from 6 mm to 10 mm, suitable for single glass
Key highlights
- Flexible Opening: Suitable for different opening configurations and space requirements.
- Contemporary Design: Clean and stylish profiles complement modern architectural interiors.
- Space-Efficient Operation: Telescopic sliding panels allow large openings to be accommodated within a compact stacking arrangement.
- Low Maintenance: Durable aluminium construction requires minimal routine maintenance.
- Design Flexibility: Wide range of profiles, shapes, and finishes available for different applications.
- Concealed Hardware: Concealed hardware options help maintain a clean and streamlined appearance.
Frequently asked questions
uPVC insulates far better and costs less for ordinary residential openings. Thermally broken aluminium is stronger, so it carries larger panels with slimmer frames. We usually specify uPVC for bedrooms, kitchens and bathrooms, and aluminium for very large sliders, stairwell glazing and anything above about 2.4 metres tall.
Not if the profile is UV stabilised and lead-free, which ours are. Yellowing happens with cheap unstabilised profile or recycled material. We supply a written warranty against discolouration.
An acoustic laminated inner pane inside a double-glazed unit, with the two panes at different thicknesses and a wide cavity. Just as important, choose a casement or tilt-and-turn window rather than a slider, because the sash needs to compress onto its gaskets to seal.
Yes. We bend profile on a heated forming table from a site template, so semi-circular, segmental and elliptical heads are all possible, fixed or with an operable lower sash.
