Internal Partition System

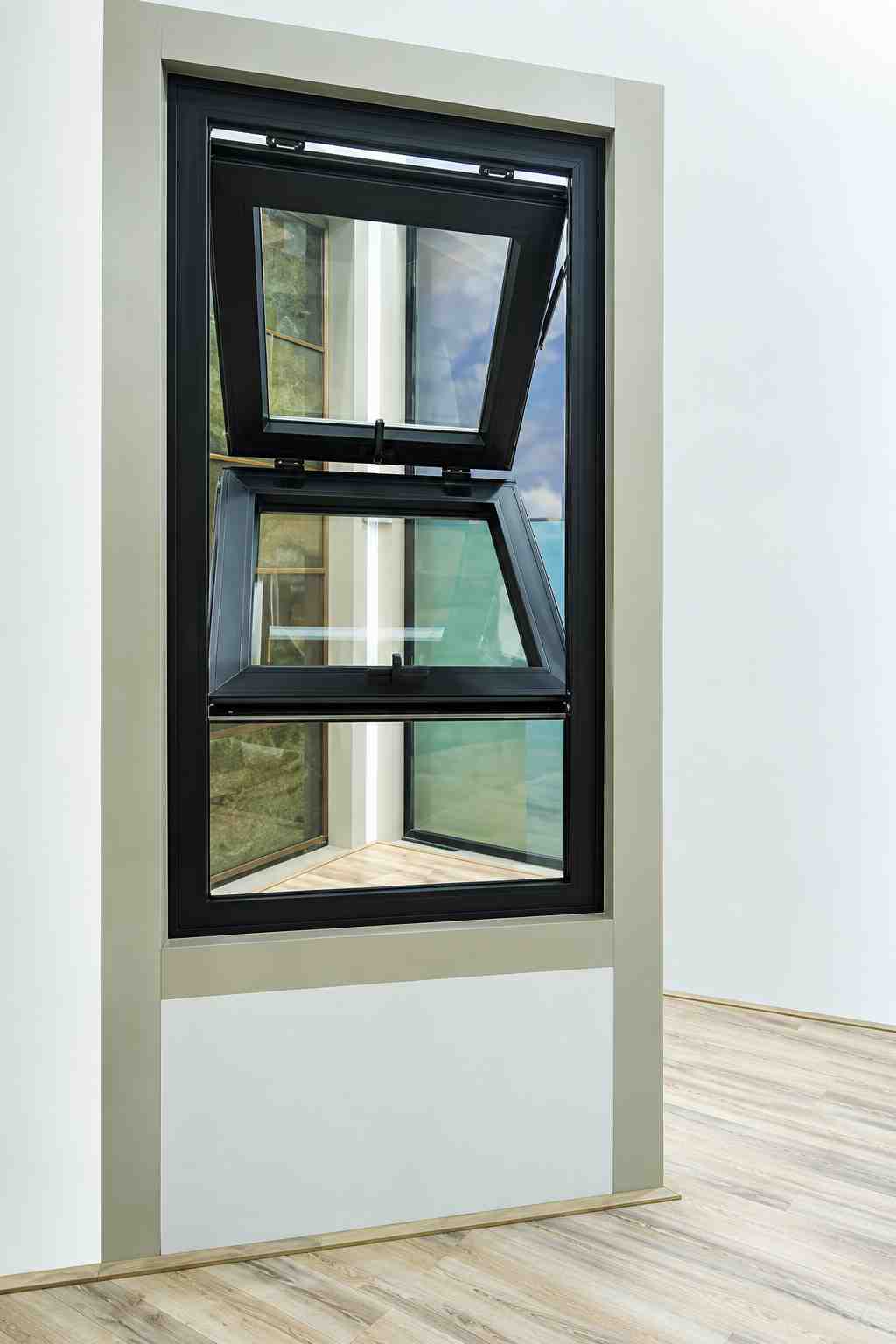

Vertical Fold & Slide
ENCRAFT Vertical Fold & Slide Systems are designed to provide a flexible and space-efficient opening solution for modern architectural applications. The system combines folding and sliding movement, allowing panels to be arranged efficiently while creating a wider and more open access area.
Vertical Fold & Slide
ENCRAFT Vertical Fold & Slide Systems are designed to provide a flexible and space-efficient opening solution for modern architectural applications. The system combines folding and sliding movement, allowing panels to be arranged efficiently while creating a wider and more open access area.
Its contemporary aluminium profile design offers a clean and refined appearance, while the system can be adapted with different profiles, shapes, and finishes to suit a variety of architectural requirements. Durable construction and low-maintenance characteristics make it suitable for both residential and commercial applications.
Concealed hinge options help maintain a streamlined appearance, keeping visible hardware to a minimum.
Technical Details
Outer Frame Depth: 62 mm
Maximum Frame Height: 2000 mm
Maximum Frame Width: 2000 mm
Maximum Sash Height: Up to 1000 mm
Maximum Sash Width: Up to 1000 mm
Maximum Load Capacity: 120 kg per sash
Glazing Options: Internal glazing from 6 mm to 36 mm, supporting single, double, and triple glazing
Key highlights
- Flexible Opening: Available in both inward-opening and outward-opening configurations.
- Contemporary & Stylish: Modern profile design complements contemporary architecture.
- Low Maintenance: Aluminium construction is designed for easy upkeep and long-term use.
- Design Flexibility: Wide range of profiles, shapes, and finishes available for different applications.
- Concealed Hinges: Hidden hinge options provide a clean and minimal appearance.
- Fold & Slide Operation: Combines folding and sliding movement for efficient use of available space.
Frequently asked questions
uPVC insulates far better and costs less for ordinary residential openings. Thermally broken aluminium is stronger, so it carries larger panels with slimmer frames. We usually specify uPVC for bedrooms, kitchens and bathrooms, and aluminium for very large sliders, stairwell glazing and anything above about 2.4 metres tall.
Not if the profile is UV stabilised and lead-free, which ours are. Yellowing happens with cheap unstabilised profile or recycled material. We supply a written warranty against discolouration.
An acoustic laminated inner pane inside a double-glazed unit, with the two panes at different thicknesses and a wide cavity. Just as important, choose a casement or tilt-and-turn window rather than a slider, because the sash needs to compress onto its gaskets to seal.
Yes. We bend profile on a heated forming table from a site template, so semi-circular, segmental and elliptical heads are all possible, fixed or with an operable lower sash.
