uPVC Doors

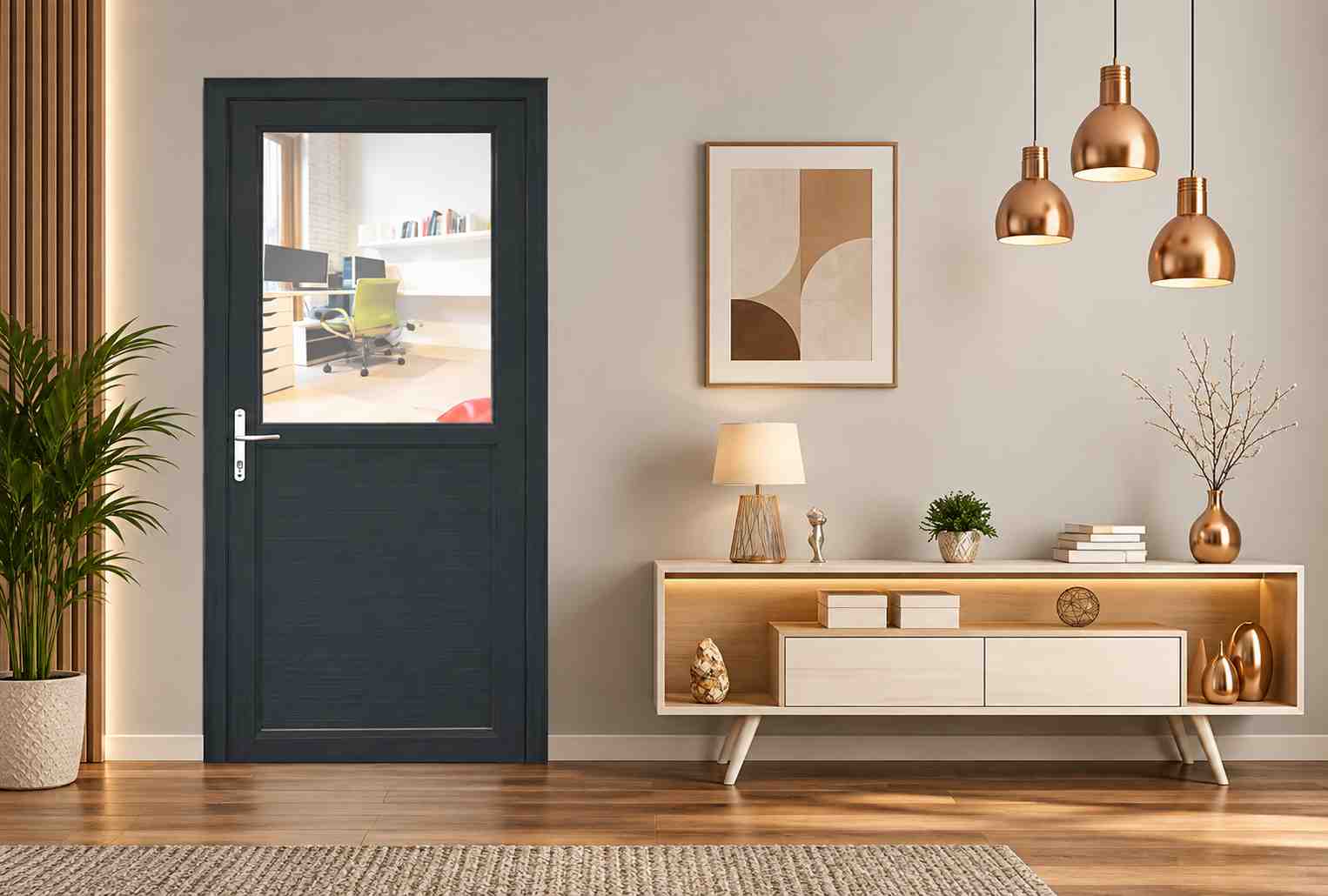

uPVC Casement Door
The everyday hinged door — for entrances, bathrooms, utility rooms and balconies.
A side-hung uPVC door on adjustable hinges with a multi-point lock that throws hooks and rollers into the frame at three or more points. The result is a door that stays square, seals against water at the threshold and resists forcing at the edge.
Available single or double leaf, with glazed, half-glazed or fully panelled infills.
Key highlights
- 3D adjustable hinges
- Multi-point hook locking
- Single or double leaf
- Glazed, half-glazed or panelled
- Water-tight threshold detail
Technical specification
| Leaf | Single or double, inward or outward |
|---|---|
| Profile | Multi-chambered, lead-free uPVC with galvanised steel reinforcement |
| Glazing | 5mm single, 5+12+5 double or acoustic laminated |
| Hardware | Imported multi-point locking, stainless steel fasteners |
| Gasket | Co-extruded EPDM on frame and sash |
| Finish | White, RAL solid colours and woodgrain laminates |
| Warranty | 10 years on profile, 5 years on hardware |
Frequently asked questions
uPVC insulates far better and costs less for ordinary residential openings. Thermally broken aluminium is stronger, so it carries larger panels with slimmer frames. We usually specify uPVC for bedrooms, kitchens and bathrooms, and aluminium for very large sliders, stairwell glazing and anything above about 2.4 metres tall.
Not if the profile is UV stabilised and lead-free, which ours are. Yellowing happens with cheap unstabilised profile or recycled material. We supply a written warranty against discolouration.
An acoustic laminated inner pane inside a double-glazed unit, with the two panes at different thicknesses and a wide cavity. Just as important, choose a casement or tilt-and-turn window rather than a slider, because the sash needs to compress onto its gaskets to seal.
Yes. We bend profile on a heated forming table from a site template, so semi-circular, segmental and elliptical heads are all possible, fixed or with an operable lower sash.
